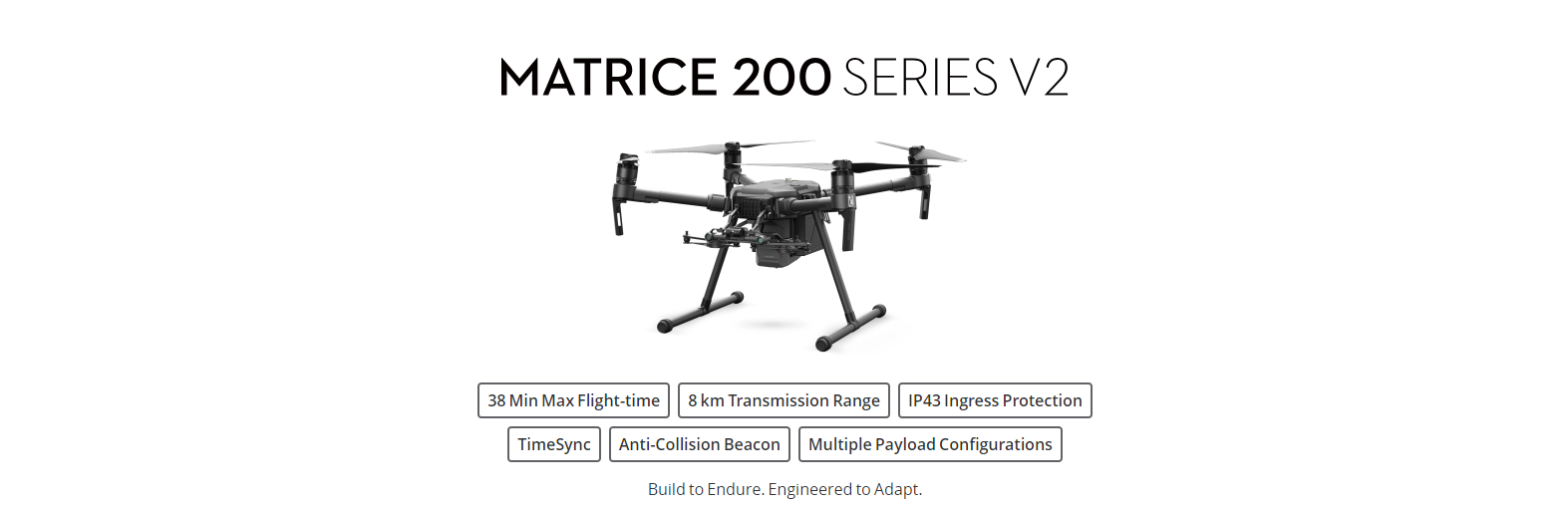

DJI Matrice 200 Series including the M200, M210 and M210RTK

DJI Matrice 200 /210 / 210RTK V2 Series Commercial Drone Platform

(No reviews yet) Leave a Review

please call for a quote



Built to Endure. Engineered to Adapt.
The ultimate platform for aerial productivity combines a rugged design and simple configurability to work as a solution for a variety of industrial applications. Improvements to the M200 Series V2 enhance intelligent control systems, flight performance, and add flight safety and data security features.

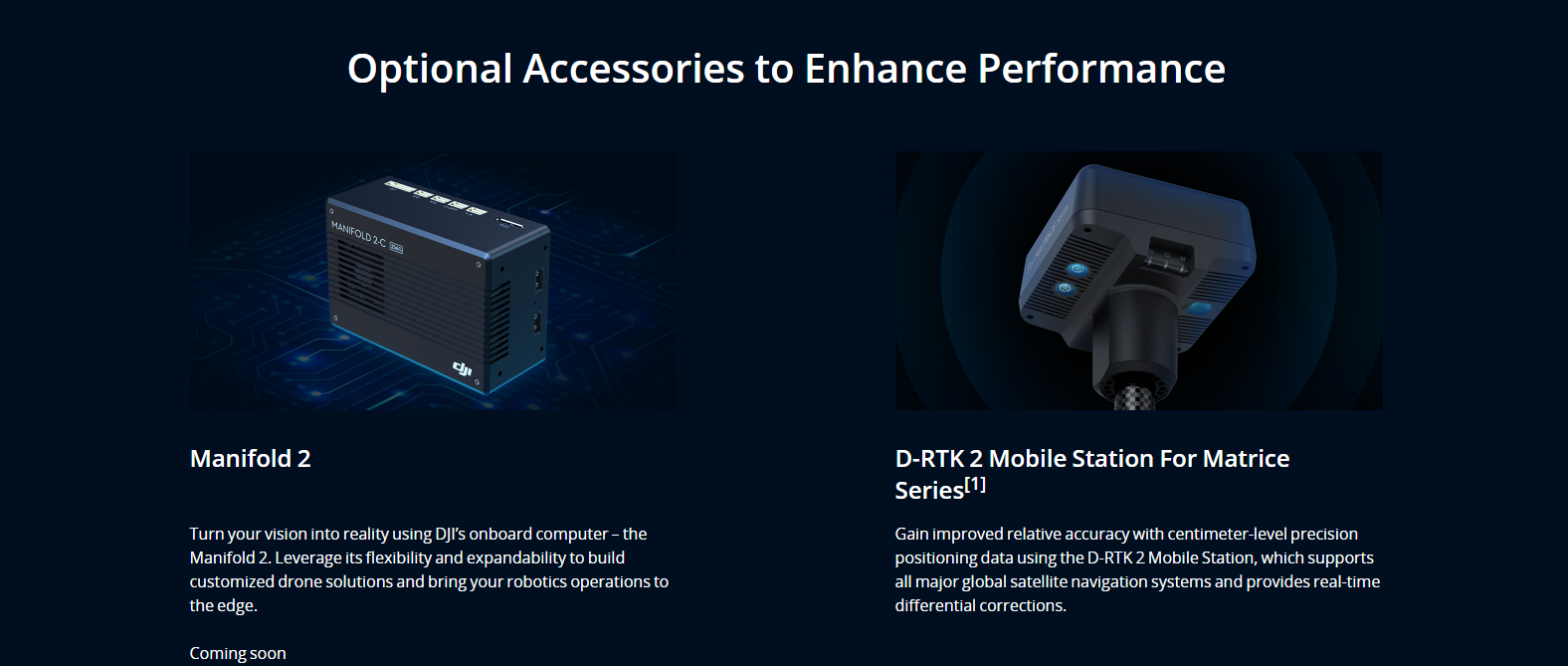

[1] D-RTK 2 High Precision GNSS Mobile Station For Matrice Series
[2] Due to local policies, some countries do not support 5.8 GHz transmission.
[3] Unobstructed, free of interference, when FCC compliant. Maximum flight range specification is a proxy for radio link strength and resilience. Always fly your drone within visual line of sight unless otherwise permitted.

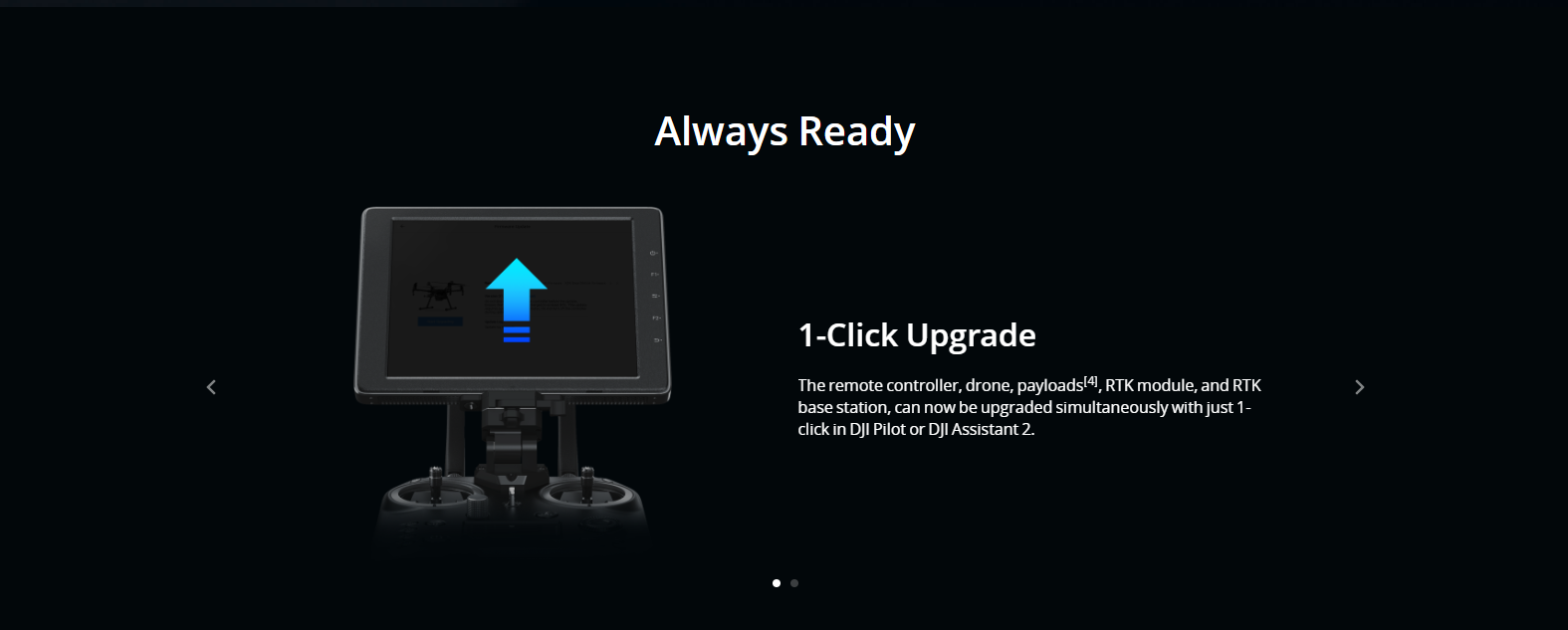

[4] Currently supports DJI Zenmuse X5S, Zenmuse X7, Zenmuse X4S. Support for additional payloads is coming soon.
[5] Acquired at a constant speed of 25 kph, free of wind. Actual flight time may vary because of the environment, use of flight modes, and or accessories.m200v2.pngm200v21.pngm200v22.pngm200v23.pngm200v24.pngm200v25.pngm200v26.pngm200v27.pngm200v28.pngm200v29.pngm200v210.png

SPECS



M200 V2

Aircraft

  • Dimensions

  • Unfolded, propellers and landing gears included, 883×886×398 mm
    Folded, propellers and landing gears excluded, 722×247×242 mm
  • Diagonal Wheelbase

  • 643 mm
  • Weight

  • Approx. 4.69 kg (with two TB55 batteries)
  • Max Takeoff Weight

  • 6.14 kg
  • Max Payload

  • 1.45 kg
  • Operating Frequency

  • 2.4000-2.4835 GHz; 5.725-5.850 GHz
  • EIRP

  • 2.4 GHz: ≤ 26 dBm (NCC/FCC); ≤ 20 dBm (CE/MIC); ≤ 20 dBm (SRRC)
    5.8 GHz: ≤ 26 dBm (NCC/FCC); ≤ 14 dBm (CE); ≤ 26 dBm (SRRC)
  • Hovering Accuracy (P-mode with GPS)

  • Vertical:±1.64 feet (±0.5 m) or ±0.33 feet
    (±0.1 m, Downward Vision System enabled)
    Horizontal:±4.92 feet (±1.5 m) or ±0.98 feet (±0.3 m, Downward Vision System enabled)
  • Max Angular Velocity

  • Pitch: 300°/s, Yaw: 120°/s
  • Max Pitch Angle

  • S-mode: 35°;
    P-mode: 30° (Forward Vision System enabled: 25°);
    A-mode: 30°
  • Max Ascent Speed

  • 16.4 ft/s (5 m/s)
  • Max Descent Speed (vertical)

  • 9.8 ft/s (3 m/s)
  • Max Speed

  • S-mode/A-mode 81 kph (50.3 mph);
    P-mode: 61.2 kph (38 mph)
  • Max Service Ceiling Above Sea Level

  • 9842 feet (3000 m, with 1760S propellers)
  • Max Wind Resistance

  • 39.4 ft/s (12 m/s)

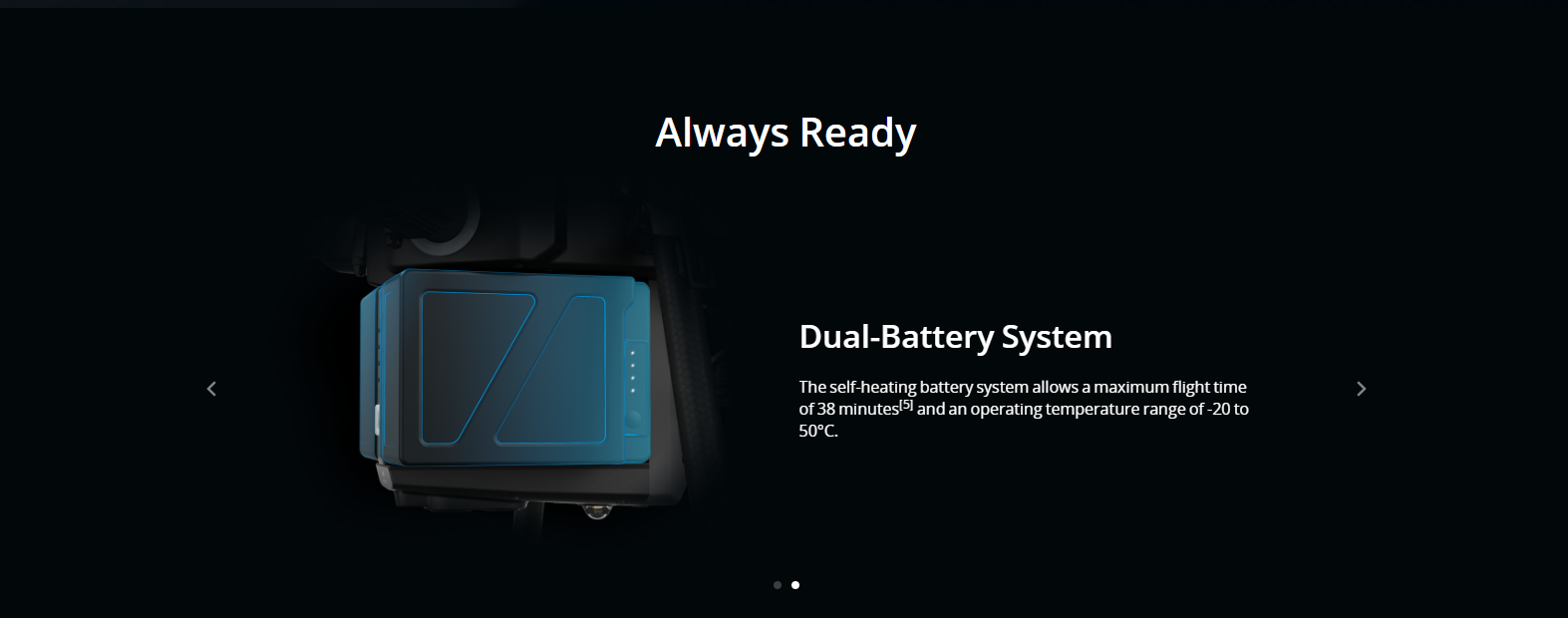

  • Max Flight Time (with two TB55 batteries)

  • 38 min (no payload),
    24 min (takeoff weight: 6.14 kg)
  • Supported DJI Gimbals

  • Zenmuse X4S/X5S/X7/XT/XT2/Z30
  • Supported Gimbal Mounting

  • Single Gimbal, Downward
  • Ingress Protection Rating

  • IP43
  • GNSS

  • GPS+GLONASS
  • Operating Temperature

  • -4° to 122° F (-20° to 50° C)

Remote Controller (GL900A)

  • Operating Frequency

  • 2.4000-2.4835 GHz; 5.725-5.850 GHz
  • Max Transmitting Distance(unobstructed, free of interference)

  • NCC/FCC: 5 mi (8 km);
    CE/MIC: 3.1 mi (5 km);
    SRRC: 3.1 mi (5 km)
  • EIRP

  • 2.4 GHz: ≤ 26 dBm (NCC/FCC); ≤ 20 dBm (CE/MIC); ≤ 20 dBm (SRRC)
    5.8 GHz: ≤ 26 dBm (NCC/FCC); ≤ 14 dBm (CE); ≤ 26 dBm (SRRC)
  • Power Supply

  • Extended Intelligent Battery (Model: WB37-4920mAh-7.6V)
  • Output Power (max)

  • 13 W (Without supplying power to monitor)
  • USB Power Supply

  • 1 A⎓ 5.2 V (max)
  • Operating Temperature

  • -4° to 122° F (-20° to 50° C)

Downward Vision System

  • Velocity Range

  • <32.8 ft/s (10 m/s) at the height of 6.56 feet (2 m)
  • Altitude Range

  • <32.8 feet (10 m)
  • Operating Range

  • <32.8 feet (10 m)
  • Operating Environment

  • Surfaces with clear patterns and adequate lighting (> 15 lux)
  • Ultrasonic Sensor Operating Range

  • 0.33-16.4 feet (0.1-5 m)
  • Ultrasonic Sensor Operating Environment

  • Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

Forward Vision System

  • Obstacle Sensing Range

  • 2.3-98.4 feet (0.7-30 m)
  • FOV

  • Horizontal 60°; Vertical: 54°
  • Operating Environment

  • Surfaces with clear patterns and adequate lighting (> 15 lux)

Upward Infrared Sensing System

  • Obstacle Sensing Range

  • 0-16.4 feet (0-5 m)
  • FOV

  • ±5°
  • Operating Environment

  • Large, diffuse and reflective obstacles (reflectivity >10%)

Intelligent Flight Battery (TB55-7660mAh-22.8V)

  • Capacity

  • 7660 mAh
  • Voltage

  • 22.8 V
  • Battery Type

  • LiPo 6S
  • Energy

  • 174.6 Wh
  • Net Weight (Single One)

  • Approx. 885 g
  • Operating Temperature

  • -4° to 122° F (-20° to 50° C)
  • Charging Temperature

  • 41° to 104° F (5° to 40° C)
  • Max Charging Power

  • 180 W

Charger (IN2C180)

  • Voltage

  • 26.1 V
  • Rated Power

  • 180 W

Charging Hub (IN2CH)

  • Input Voltage

  • 26.1 V
  • Input Current

  • 6.9 A

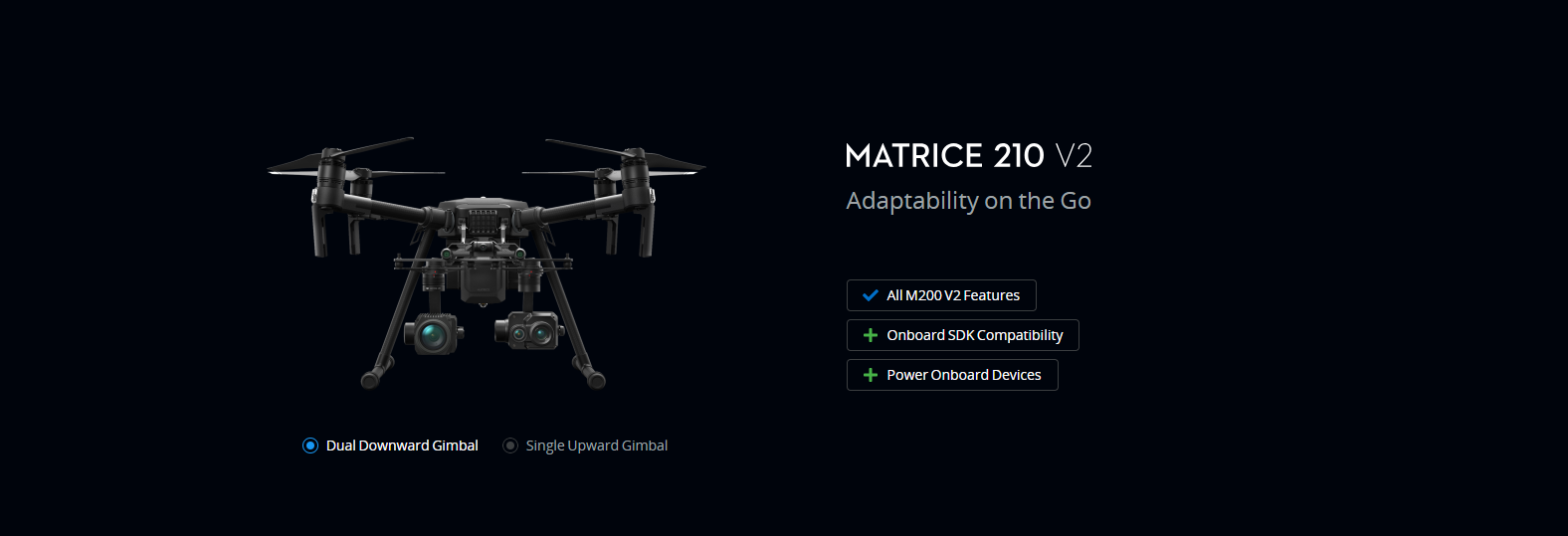

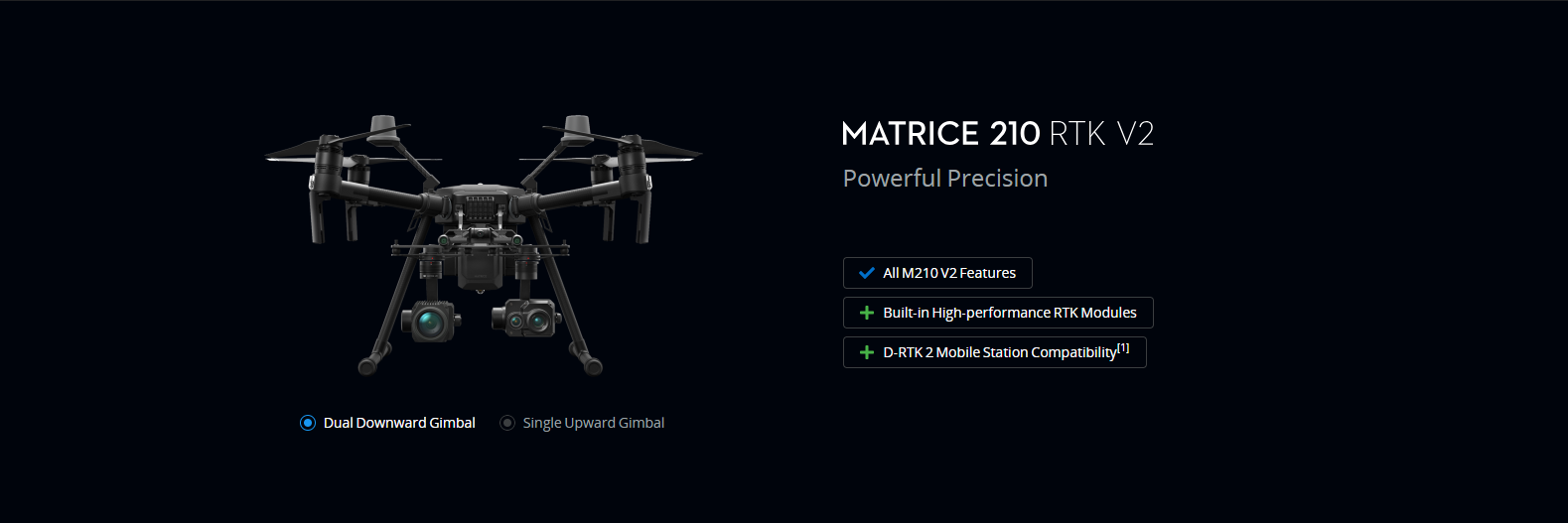

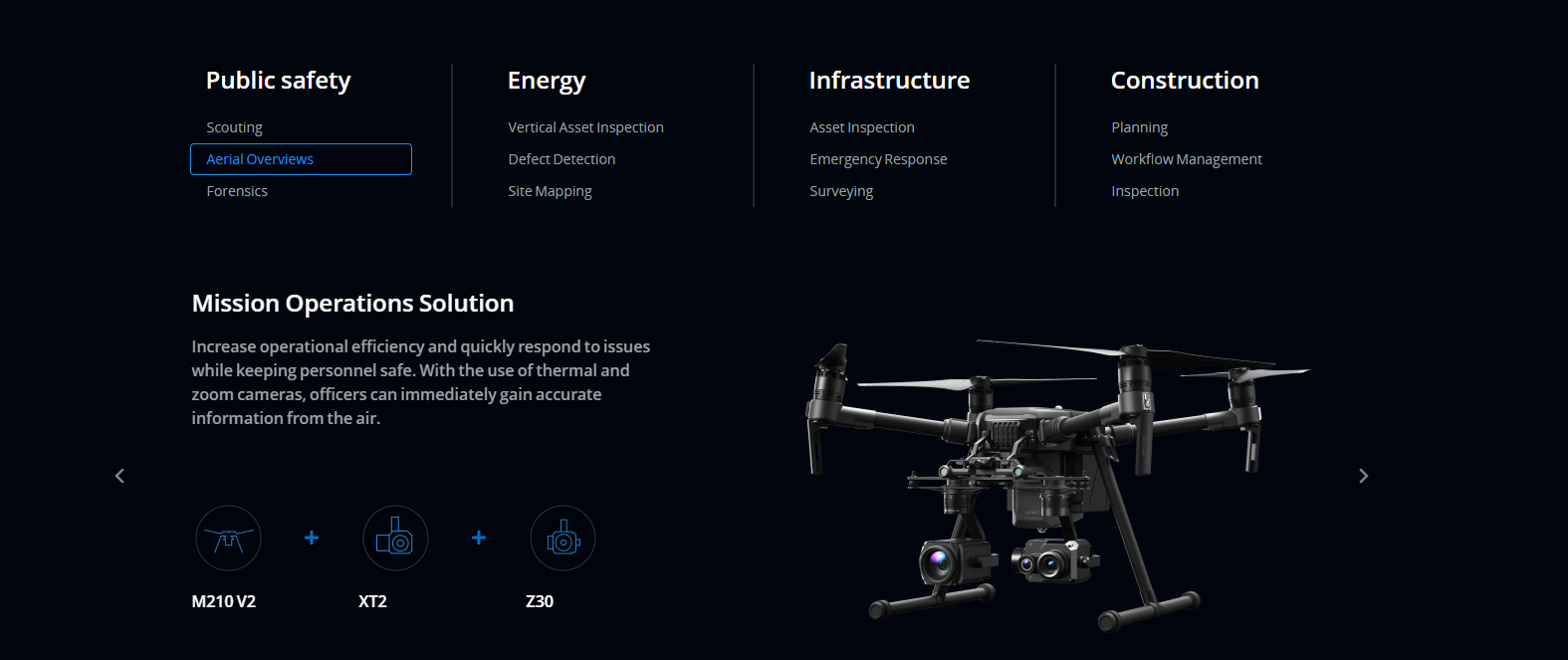

M210 V2 / M210 RTK V2

Aircraft

  • Dimensions

  • M210 V2:
    Unfolded, propellers and landing gears included, 883×886×398 mm
    Folded, propellers and landing gears excluded, 722×282×242 mm
    M210 RTK V2:
    Unfolded, propellers and landing gears included, 883×886×427 mm
    Folded, propellers and landing gears excluded, 722×282×242 mm
  • Diagonal Wheelbase

  • 643 mm
  • Weight

  • M210 V2: Approx. 4.8 kg (with two TB55 batteries);
    M210 RTK V2: Approx. 4.91 kg (with two TB55 batteries)
  • Max Takeoff Weight

  • 6.14 kg
  • Max Payload

  • M210 V2: 1.34 kg; M210 RTK V2: 1.23 kg
  • Operating Frequency

  • 2.4000-2.4835 GHz; 5.725-5.850 GHz
  • EIRP

  • 2.4 GHz: ≤ 26 dBm (NCC/FCC); ≤ 20 dBm (CE/MIC); ≤ 20 dBm (SRRC)
    5.8 GHz: ≤ 26 dBm (NCC/FCC); ≤ 14 dBm (CE); ≤ 26 dBm (SRRC)
  • Hovering Accuracy (P-mode with GPS)

  • Vertical: ±1.64 feet (±0.5 m) or ±0.33 feet (±0.1 m, Downward Vision System enabled)
    Horizontal: ±4.92 feet (±1.5 m) or ±0.98 feet (±0.3 m, Downward Vision System enabled)
  • Hovering Accuracy (D-RTK, M210 RTK V2)

  • Vertical: ±0.33 feet (±0.1 m); Horizontal: ±0.33 feet (±0.1 m)
  • Max Angular Velocity

  • Pitch: 300°/s, Yaw: 120°/s
  • Max Pitch Angle (Dual Downward Gimbal/Single Upward Gimbal)

  • S-mode: 30°; P-mode: 30° (Forward Vision System enabled: 25°); A-mode: 30°
  • Max Pitch Angle [Single Downward Gimbal (Gimbal Connector I)]

  • S-mode: 35°; P-mode: 30° (Forward Vision System enabled: 25°); A-mode: 30°
  • Max Ascent Speed

  • 16.4 ft/s (5 m/s)
  • Max Descent Speed (vertical)

  • 9.8 ft/s (3 m/s)
  • Max Speed (Dual Downward Gimbal/Single Upward Gimbal)

  • S-mode/A-mode: 73.8 kph (45.9 mph); P-mode: 61.2 kph (38 mph)
  • Max Speed [ Single Downward Gimbal (Gimbal ConnectorI) ]

  • S-mode/A-mode: 81 kph (50.3 mph); P-mode: 61.2 kph (38 mph)
  • Max Service Ceiling Above Sea Level

  • 9842 feet (3000 m, with 1760S propellers)
  • Max Wind Resistance

  • 39.4 ft/s (12 m/s)
  • Max Flight Time (with two TB55 batteries)

  • M210 V2: 34 min (no payload), 24 min (takeoff weight: 6.14 kg)
    M210 RTK V2: 33 min (no payload), 24 min (takeoff weight: 6.14 kg)
  • Supported DJI Gimbals

  • Zenmuse X4S/X5S/X7/XT/XT2/Z30
  • Supported Gimbal Configurations

  • Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal
  • Ingress Protection Rating

  • IP43
  • GNSS

  • M210 V2: GPS+GLONASS;
    M210 RTK V2: GPS+GLONASS+BeiDou+Galileo
  • Operating Temperature

  • -4° to 122° F (-20° to 50° C)

Remote Controller (GL900A)

  • Operating Frequency

  • 2.4000-2.4835 GHz; 5.725-5.850 GHz
  • Max Transmitting Distance(unobstructed, free of interference)

  • NCC/FCC: 5 mi (8 km); CE/MIC: 3.1 mi (5 km); SRRC: 3.1 mi (5 km)
  • EIRP

  • 2.4 GHz: ≤ 26 dBm (NCC/FCC); ≤ 20 dBm (CE/MIC); ≤ 20 dBm (SRRC)
    5.8 GHz: ≤ 26 dBm (NCC/FCC); ≤ 14 dBm (CE); ≤ 26 dBm (SRRC)
  • Power Supply

  • Extended Intelligent Battery (Model: WB37-4920mAh-7.6V)
  • Output Power (max)

  • 13 W (Without supplying power to monitor)
  • USB Power Supply

  • 1 A⎓5.2 V (max)
  • CrystalSky Monitor

  • DJI CrystalSky 7.85inch, Resolution: 2048×1536;
    Brightness: 2000 cd/m2; Operating System: Android 5.1; Storage: ROM 128GB
  • Operating Temperature

  • -4° to 122° F (-20° to 50° C)

Downward Vision System

  • Velocity Range

  • <32.8 ft/s (10 m/s) at the height of 6.56 feet (2 m)
  • Altitude Range

  • <32.8 feet (10 m)
  • Operating Range

  • <32.8 feet (10 m)
  • Operating Environment

  • Surfaces with clear patterns and adequate lighting (>15 lux)
  • Ultrasonic Sensor Operating Range

  • 0.33-16.4 feet (0.1-5 m)
  • Ultrasonic Sensor Operating Environment

  • Non-absorbing material, rigid surfaces (thick indoor carpeting will adversely affect performance)

Forward Vision System

  • Obstacle Sensing Range

  • 2.3-98.4 feet (0.7-30 m)
  • FOV

  • Horizontal: 60°; Vertical: 54°
  • Operating Environment

  • Surfaces with clear patterns and adequate lighting (> 15 lux)

Upward Infrared Sensing System

  • Obstacle Sensing Range

  • 0-16.4 feet (0-5 m)
  • FOV

  • ±5°
  • Operating Environment

  • Large, diffuse, and reflective obstacles (reflectivity >10%)

Intelligent Flight Battery (TB55-7660mAh-22.8V)

  • Capacity

  • 7660 mAh
  • Voltage

  • 22.8 V
  • Battery Type

  • LiPo 6S
  • Energy

  • 174.6 Wh
  • Net Weight (Single One)

  • Approx. 885 g
  • Operating Temperature

  • -4° to 122° F (-20° to 50° C)
  • Charging Temperature

  • 41° to 104° F (5° to 40° C)
  • Max Charging Power

  • 180 W

Charger (IN2C180)

  • Voltage

  • 26.1 V
  • Rated Power

  • 180 W

Charging Hub (IN2CH)

  • Input Voltage

  • 26.1 V
  • Input Current

  • 6.9 A
