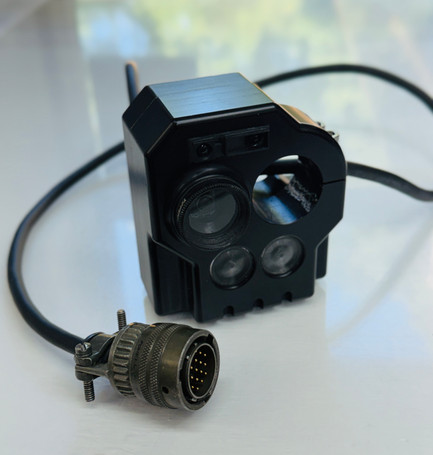

StrykEYE™ Dynamic Video Aiming System for EOD Robots
See Clearer. Aim Smarter. Strike First.
The StrykEYE™ Dynamic Video Aiming System is a next-generation targeting solution designed specifically for EOD robots. By combining a high-resolution color camera, integrated rangefinder, and dynamic aiming sensors, StrykEYE automatically calculates and displays the true point of impact directly on the operator’s video feed—eliminating guesswork and improving first-shot accuracy.
Unlike traditional fixed crosshair systems, StrykEYE continuously adjusts impact placement based on measured distance, barrel pitch, and elevation. The result is precise engagement capability from 4 inches to 10+ feet, giving operators greater confidence and effectiveness in critical missions.
Whether deployed with single- or dual-barrel disruptors, StrykEYE provides real-time visual correction and clear, high-contrast crosshairs that remain visible in all lighting conditions.
Key Features
- Dynamic Point-of-Impact Correction
- Automatically adjusts the displayed point of impact based on measured range and barrel angle.
- Integrated Color Camera
- Provides a clear, full-color image directly from the PAN barrel.
- Built-In Rangefinder
- Continuously measures target distance for accurate impact calculations.
- Dynamic Aiming Sensors
- Monitors barrel pitch and elevation for real-time corrections.
- Single or Dual Barrel Support
- Displays independent impact points for one or two barrel configurations.
- Always-Visible Crosshairs
- High-contrast crosshairs with white outlines remain visible in bright, dark, and challenging environments.
- Factory Pre-Calibrated
- Ready for deployment with no field calibration required.
- Simple Integration
- Single-connection installation with 12–24VDC power supplied directly from the robot.
- Broad Compatibility
- Supports PAL and NTSC video systems and multiple connector options for integration with various EOD platforms.
Benefits
- Eliminate standoff distance estimation
- Improve disruptor placement accuracy
- Reduce operator workload and uncertainty
- Increase mission effectiveness and repeatability
- Deploy quickly with minimal setup requirements
Technical Specifications
- Effective Range: 4" to 10'+
- Video Output: PAL or NTSC
- Power Input: 12–24VDC
- Point-of-Impact Display: Real-time dynamic correction
- Barrel Support: Single or dual barrel
- Calibration: Factory pre-calibrated
The StrykEYE™ system gives EOD operators the confidence to engage accurately at varying distances while maintaining complete situational awareness through a single integrated video aiming solution.
Contact us for more details and demos.
