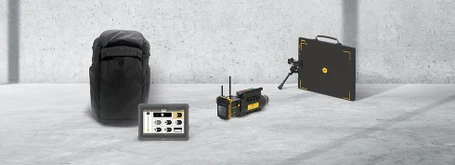

NOVO Urban III Covert Portable Digital X-Ray System
The NOVO Urban III is a covert, lightweight portable digital X-ray system designed for EOD, bomb squad, tactical, security, and urban field operations where compact size, rapid deployment, and dependable communications are critical.
Built around the NOVO 15WS digital detector, the Urban III combines a compact backpack configuration with wired and wireless operating modes, NOVO Mesh wireless technology, Windows or Android control options, and compatibility with NOVO Touch and XTK® software.
The 15WS detector weighs only 3.5 lbs. (1.6 kg) including battery and provides a 9.1 in. × 11.2 in. imaging area in a rugged 10.6 in. × 12.9 in. detector package.
Key Features
- Covert, lightweight backpack digital X-ray system
- NOVO 15WS digital detector
- Detector weight of only 3.5 lbs. (1.6 kg) including battery
- Wired and wireless operating modes
- NOVO Mesh wireless communications technology
- 10 in. 1500-NIT handheld tablet option
- Android mobile-phone control option
- MIL-DTL-38999 connector option with Spark III controller
- Supports multi-tablet control and display
- Operates with NOVO Touch Software
- Compatible with XTK® software
- Improved Genie image-processing algorithm
- 10 m communication split cable for wired operation
System Overview
- (1) Urban Backpack
- (1) NOVO 15WS Detector
- (1) Spark Mesh Battery Free or Spark III Controller
- (1) Wireless Ranger Mesh Node
- (1) NOVO Bright S 10 in. 1500-NIT Tablet with NOVO Touch Windows Software
- (1) Android Mobile Phone Option with NOVO Touch Android Software
- (1) Golden X-Ray Generator
- (1) Bipod
- (1) 10 m Communication Split Cable
- (1) USB-to-Communication Adapter
NOVO 15WS Detector Specifications
| Detector Model |
NOVO 15WS |
| Steel Penetration* |
3.5 in. (90 mm) |
| Detector Weight Including Battery |
3.5 lbs. (1.6 kg) |
| Load Proof |
660 lbs. (300 kg) |
| Imaging Area |
9.1 in. × 11.2 in. (23.1 × 28.4 cm) |
| Detector Size |
10.6 in. × 12.9 in. (26.9 × 32.9 cm) |
| Active Area |
74% |
| Drop Test |
40 in. (100 cm) |
| Detector Thickness |
0.6 in. (15.6 mm) |
| Bit Depth |
16-bit, latest generation |
| Connector |
Magnetic Dual-Direction Connector |
*Steel penetration tested with a Golden XRS-3 at approximately 10 in. (25 cm).
NOVO Mesh Wireless Technology
The Urban III uses NOVO Mesh Technology to provide reliable wireless communications in challenging RF environments, with particular emphasis on congested urban scenarios.
- Up to 0.31 miles (500 m) line-of-sight between compatible mesh nodes
- Multiple nodes support operation around corners and obstacles
- Supports subterranean operating environments
- Each compatible wireless unit automatically functions as a relay node
- Additional Ranger Mesh Nodes can be added to extend or redirect communications
Controller Options
Spark Mesh Battery Free
- Controller weight: 0.9 lbs. (0.4 kg)
- Uses DeWalt 20V battery mount
- Up to approximately 4,000 pulses*
- Wireless range up to 0.31 miles (500 m) line-of-sight
- Supports DeWalt 20V Golden X-ray generators
- Quick connection to generator
- Weatherproof design
- LED status indications
- Supports Golden generator on/off and battery-status information
Spark III
- Controller weight: 0.7 lbs. (0.3 kg)
- Approximately 6 hours of built-in battery operation
- Wireless range up to 0.24 miles (400 m) line-of-sight
- MIL-DTL-38999 connectors
- Supports all Golden X-ray generators
- Quick connection to generator
- Weatherproof design
- LED status indications
- Supports Golden generator on/off and battery-status information
*Battery/pulse performance tested by NOVO using the Golden XR150.
Tablet & Viewing Options
| Device |
Screen Size |
Resolution |
Brightness |
Operating System |
Battery Operation* |
| Panasonic Toughbook® CF-33 |
12 in. |
2160 × 1440 |
1200 NIT |
Windows |
8 Hours |
| NOVO Bright S |
10.1 in. |
1920 × 1200 |
1500 NIT |
Windows |
6+ Hours |
| Panasonic Toughpad™ FZ-G2 |
10.1 in. |
1920 × 1200 |
1000 NIT |
Windows |
5+ Hours |
| Samsung Galaxy S |
6.1 in. |
2340 × 1080 |
980 NIT |
Android |
10+ Hours |
*Battery operation time listed at 800-NIT brightness where applicable. Additional tablets and laptops are supported.
Compatible X-Ray Generators
| Generator |
kVp |
Weight |
Dimensions |
| LiteX |
120 |
5.6 lbs. (2.5 kg) |
11.7 × 3.2 × 4.7 in. (29.9 × 8.2 × 12 cm) |
| XR150 |
150 |
5.9 lbs. (2.7 kg) |
10.4 × 3.5 × 4.7 in. (26.6 × 9 × 12.1 cm) |
| XR200 |
150 |
10.7 lbs. (4.8 kg) |
10.7 × 4.3 × 5.8 in. (27.2 × 10.8 × 14.8 cm) |
| XRS-3 |
270 |
11.8 lbs. (5.3 kg) |
14.2 × 4.3 × 5.8 in. (36.1 × 10.9 × 14.8 cm) |
| XRS-4 |
370 |
18.3 lbs. (8.3 kg) |
19.3 × 4.8 × 7.1 in. (48.9 × 12.2 × 17.9 cm) |
NOVO states that the Urban III supports additional X-ray generators beyond those listed above.
Available Accessories
- 3D Arc Lite – small-format 3D imaging with exact X, Y, and Z measurements
- Lookout – organic detection with live video and audio
- Folding Slider L – designed for screening large objects and elevated operation
- Folding Slider XXL – oversized slider for very large objects
- 3D Arc Mesh – automated 3D imaging with exact X, Y, and Z measurements
- Additional Ranger Mesh Node – extends communications around corners, obstacles, and subterranean environments
- Extension Cables – available in 50 m, 100 m, and 150 m lengths for up to 300 m total
- Armor / Protective Casing
- Soft Cover
- Diagonal Tripod Mount – supports 12, 15, and 22 in. detectors with multiple positioning options
- Robot C-Arm
- Robot Detector Frame
- Detector and X-Ray Holder
Software
The Urban III operates with NOVO Touch Software and is compatible with XTK® Software. NOVO also identifies an improved Genie image-processing algorithm designed to pull out minute image details up to four times faster.
System Configuration
The NOVO Urban III can be configured with different controller, tablet, X-ray generator, wireless, and accessory options depending on operational requirements. Contact Ideal Blasting Supply for assistance configuring an Urban III system for your EOD, bomb squad, tactical, security, or urban-response application.
